Automatic Poultry Farm Environment Control System for Broiler Chickens
This systm saves the labor and the resources under the condition o assuring the optimum growth enironment of the chickens. It is imported from Israel can set an optimum working mode according to th local climate and raising environment.
|environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures||environmental controller||Temptron 607/610/616, AC-2000 PLUS, Rotem Platinum Plus||1.Main parts all adopts world class products to ensure the reliability;|
|environmental sensor||world top class products|
|humidity sensor||world top class products|
|negative pressure gauge||world top class products|
|power box||reliable and long service life|
|watt-hour meter box||reliable and long service life|
|main control box(with alarm)||reliable and long service life|
|sub control box||reliable and long service life|
|UPS power supply group(regulator control box use)||with battery and charger|
|lighting system( light bulb not included)||for broiler house|
|wires and fixtures||for broiler hous|

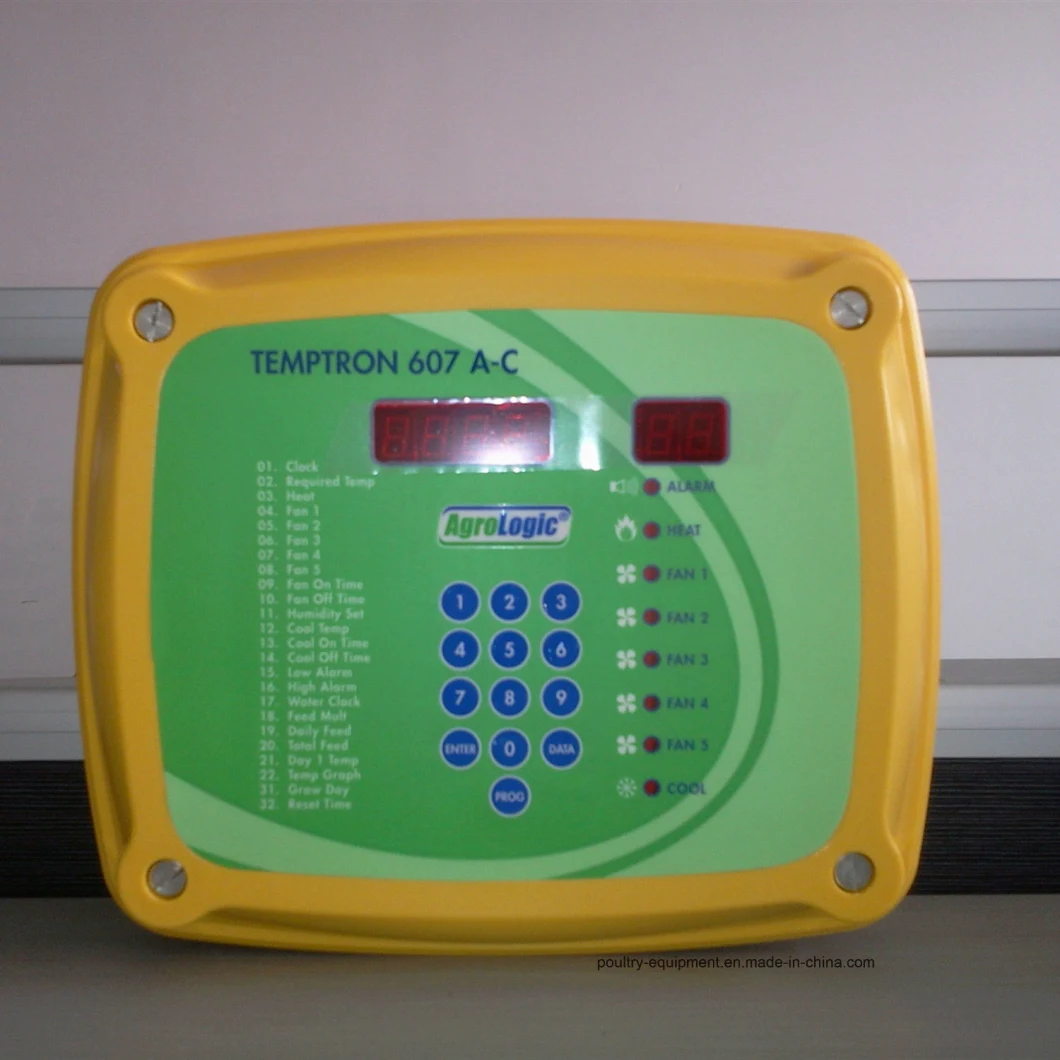

Temptron 607 environmental control principle
|1||Set temperature:||Poultry house within the theory of chicken need temperature,|
|2||The actual temperature:||temperature probe measurement of the actual temperature|
|3||Spy:||group 1 36 "fan (guarantee chickens, the minimum breathing quantity for the hen house normal ventilation), assuming that set temperature for 30 degrees|
|4||Second:||group 2 36 "fan (to prevent henhouse temperature is exorbitant) open temperature for 31 degrees.|
|5||Three gears:||3, 4) 50 "fan open temperature for 32 degrees|
|6||Four gears:||2, 5 Taiwan 50 "fan open temperature for 33 degrees|
|7||Five gears:||1, 6 sets 50 "fan open temperature for 34 degrees|
|8||Six gears:||wet curtain open temperature for 34 degrees|
|9||Seven archives:||hot air stove open temperature for 28 degrees, the temperature to 32 degrees|
|10||Eight gears:||alarm below 25 degrees (low temperature alarm), higher than thirty-five degrees, high temperature alarming|
Poultry house horizontal ventilation:
In normal circumstancs. 607 automatic control first gear fan disconditinuities ventilation, henhouse within the normal ventilation, guarantee the henhouse within the air is fresh, meet the minimum breathing quantity chickens, When the temperature inside the henhouse sensors measure the temperature inside the shekel than tongda fan set temperature, the second fan open.
Poultry house using longitudinal ventilation:
When the temperature inside the henhouse than third-seeded fan open temperature, the first group of big fan start, when more than 4 gears temperature, a second group of big fan also open, which in turn on. When the final group fan and pump start-up damp curtain at the same time open. Can uarantee the summer henhouse within the humidity will not exorbitant, still can make sure the temperature inside the henhouse in setting, within the scope of the chickens and confortale life.
Meanwhile, 607 can be set when entering longitudinal ventilation mode, horizontal ventilation shut automatically.
When the temperature reaches under low temperature alarm temperature or higher than the high temperature alarm temperature, the alarm with automatically alarm.
Our products can supply including the following systems:
1. Main feed line system
2. Automatic pan feeding line system
3.Nipple Drinking System
4.Automatic Ventilation System
5.Environment Control System
6.Cooling Pad System
6.Spraying and disinfecting system
8. Curtain System
9. Automatic Heating System
Our services :
*Site selection of standardization chicken farm
*chicken house design
*Breeding worker training
*On site technology instructionultry farming system poultry farming system poultry farming system poultry f
poultry farming system poultry farming system poultry farming system poultry farmy
Advantages to use our automatic poultry equipment :oultry farming system poultry farming system poultry farming system poultry f
*Increasing chicken living rate.
*High quality to ensure non stopping running of your house.
*Comparatively cheap price.
Weifang G-Repu Imp. & Exp. Co., Ltd is a new trading company which handling all relevant chicken farm project materials, such as poultry house raising equipment, steel structure chicken shed, plastic slat, chicks' plastic box etc.
Our company lies in Weifang, Shandong, China. Weifang city is one of the biggest processing city of all kinds of material, it's very convenient for us to find all materials and it's only 120kms from Weifang to Qingdao port and Qingdao airport.
G-Repu our colleagues all much experienced in international trading business, we can handle all related business freely, because we all have been in international business over 10 years, some persons over 15 years, and already in poultry business over 10 years. Now our main products including all kinds of poultry house raising equipments, we can guarantee you that we supplied is the best quality with cheapeast prices in China. If you have any inquiry of China products beside poultry equipment, please let us know your requirements, we can make our best offer to you within three days.
We are pleased to get your inquiry and we will reply you as soon as possible. We stick to the principle of "Quality first, service first, continuous improvement and innovation to meet the customers". For the management and "Zero defect, zero complaints" as the quality objective.
